RFML 102 | Vertical packaging machines suitable to make bags starting from a flat foil reel, combined with volumetric dosers with adjustable telescopic cups with flap. Suitable to pack granular products (snacks, short pasta, legumes, rice, dried fruit, candies, cereals, pet food, etc.)
Applications:
|
|
|
|
Machine Features:
- Optimal combination of mechanical and pneumatic system in the main mechanism of the machine enables perfect result with low energy and air consumption.
- Using Volumetric in the filling system of the machine enables more precise weights.
- Remote controls such as bag length and adjustment,photocell remote, heat and filling timing,.etc. are designed in easily accessible positions the control panel.
- Operating the machine has been eased with PLC system and touch screens.
- Compatible with various filling system.
- Simple and user friendly machine.
- Low maintenance and low operating cost.
- Barcode and expiration date print equipment
- Indication of set temperature and actual temperature of sealing surfaces
- Filler options: Volumetric cup
|
Technical specification: |
Min
|
Max
|
|||
|
Sachet Dimension
|
lenght
|
60 mm
|
350 mm
|
||
|
width
|
60 mm
|
220 mm
|
|||
|
Filling Capacity
|
70 gr
|
1000 gr
|
|||
|
Production Capacity (bag/min)
|
15-bag/min
|
40 bag/min
|
|||
|
Weight
|
800 kg
|
||||
|
Electrical Data
|
5 KW/h 3x380 Volt, three-phased
|
||||
|
Packing Metarial
|
Aluminum Foil, OPP+OPP, OPP+PE, Metallised+AL+PE
|
||||
|
Air requirement
|
5 atu, 50Lt/min
|
||||
|
Dimensions
|
L270 x W180 xH 270 cm
|
||||
|
Colour
|
Metallic gray coloured and the surfaces of the machine that are in contact with the product are made of stainless.
|
||||
|
Electric Equipment to be used
|
|||||
|
Contactor and Fuses
|
Siemens
|
||||
|
Inverters
|
Telemechanique
|
||||
|
Reducers to be used in the machine
|
Yilmaz Reducers
|
||||
|
Hard Chromium shafts
|
German made UNK
|
||||
|
Stainless quality to be used
|
316-304
|
||||

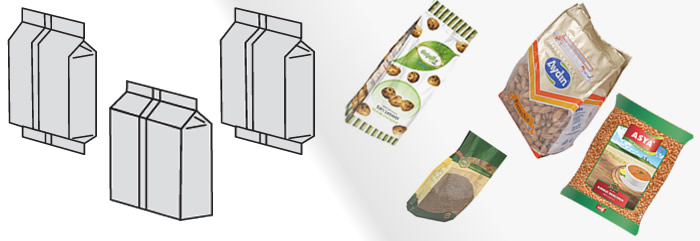

Machine packed into these types of bags:
